Off-Grid Water Source Types Compared: Reference Table

Okay so — the well running dry that first July taught me more about water math than any spreadsheet ever could. We'd been on the property maybe four months, still Portland-soft, and I left the pump running on an irrigation line about twenty minutes too long while I was distracted chasing a chicken out of the tomato bed. Then: silence. No pressure. Nothing. My partner had to explain what a recovery rate even was while I stood there panicking about whether the dogs' water bowl was going to run dry too. Nobody tells you before you move out here that there isn't just ONE way to get water off-grid — there are like ten, and every homesteading forum thread assumes you already know the tradeoffs between a dug well and a developed spring. So I built the table below, partly for me, partly because I got tired of re-Googling "spring development cost" every time a neighbor asked. Every number in it is checked against an actual installer, market guide, or extension office, not just whatever sounded right.
On this page

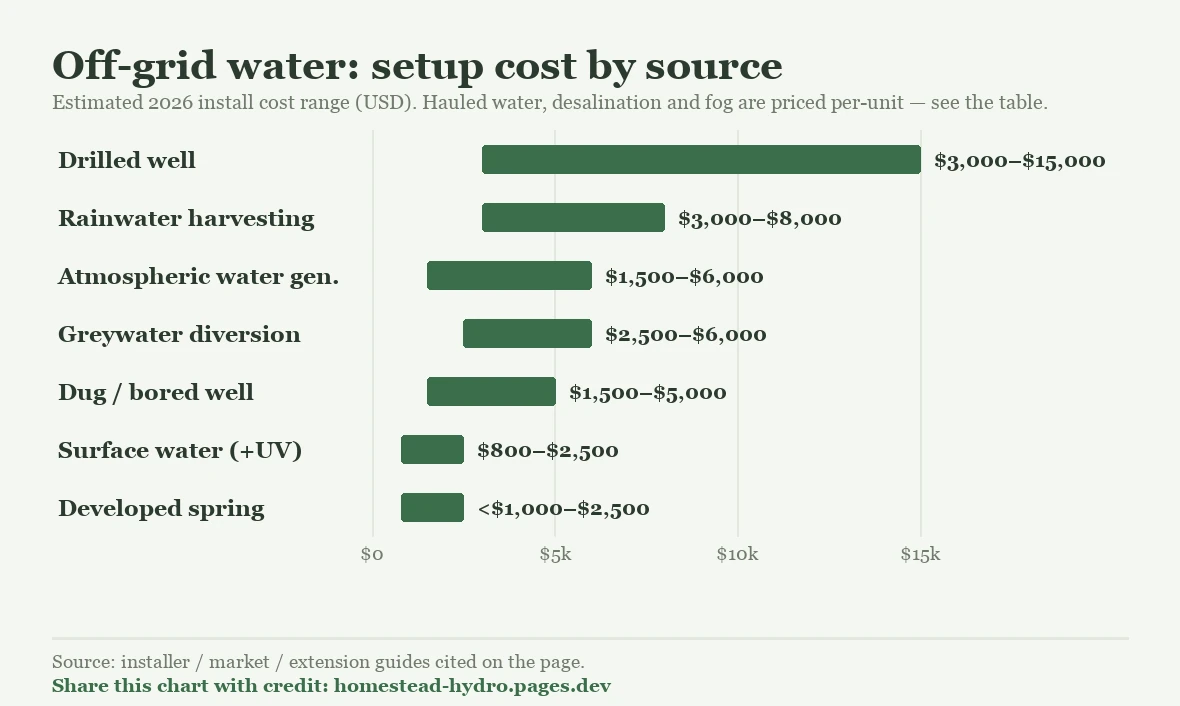

Range-bar chart of estimated 2026 setup cost for off-grid water sources: a drilled well is the priciest at $3,000 to $15,000, then rainwater harvesting $3,000 to $8,000, atmospheric water generator $1,500 to $6,000, greywater $2,500 to $6,000, dug well $1,500 to $5,000, and the cheapest options being surface water at $800 to $2,500 and a developed spring at under $1,000 to $2,500.
Estimated setup cost range by source (hauled water, desalination and fog are priced per-unit — see the table); every figure and its source are in the table below. Embed this chart with credit to homestead-hydro.pages.dev — or download the image.

The honest math: the cheapest reliable off-grid water isn't a gadget — a developed spring can cost a few hundred dollars and needs no pump or power, while an atmospheric water generator burns roughly 1 kWh per gallon and quietly becomes a second electric bill.

Off-Grid Water Source Comparison Table

Here's how the ten water sources we actually looked at (or tried, or gave up on) stack up on cost, output, and upkeep — pulled from real 2026 installer and market pricing, not guesswork.

Water Source Type Estimated Initial Cost (2026 USD) Typical Yield / Capacity Primary Maintenance Reliability Factor
Drilled Well $3,000 – $15,000 [1] 3 – 15+ Gallons Per Minute (GPM) [2] Pump and electrical inspection High (Aquifer dependent)
Dug / Bored Well $1,500 – $5,000 [3] Low to Moderate Annual disinfection; sediment removal Moderate (Seasonal fluctuations)
Rainwater Harvesting $3,000 – $8,000 [4] 0.623 gal / sq. ft. per inch of rain [4] Filter cleaning; tank sediment flush Variable (Climate dependent)
Developed Spring Under $1,000 (DIY) – $2,500 (Professional) [5] 2 – 5+ GPM (year-round drinking supply needs 2+) [5] Sediment basin clearing High (Perennial springs)
Atmospheric Water Generator $1,500 – $6,000 (Countertop unit) [6] 2 – 10 Gallons Per Day [6] Air and water filter replacement Moderate (Humidity dependent)
Hauled Water (Cistern) $200 per 1,000 gal (Delivery) [7] Limited by tank size Cistern disinfection High (Service dependent)
Greywater Diversion $2,500 – $6,000 [8] 50 – 150 Gallons per day [8] Lint filter cleaning Moderate (Usage dependent)
Surface Water (Creek/Pond) $800 – $2,500 (Sediment + UV) [9] Variable (Flow dependent) UV lamp and filter maintenance Moderate (Drought risk)
Fog Harvesting Low (Mesh and frame) 5 – 20+ Liters / m² per fog day [10] Mesh cleaning and tensioning Low (Geographic specific)
Small-Scale Desalination $1,800 – $2,500 per m³/day cap. [11] Varies by unit size Membrane replacement (5–7 years) [11] High (Coastal areas)

Kate's Field Notes

The table's the clinical version. Here's the version with opinions in it.

Drilled wells are the "just pay someone who knows what they're doing" option, and after our dry-pump summer I get why people default to them — ours has never once made me nervous the way our rain barrels do in a dry August. It's not cheap, but neither is hauling water for a season, which we also did, for two miserable months, before the well guy could get out here.

Rainwater harvesting sounds simple until you actually do the math on your own roof, and honestly the formula looks scarier than it is — it's really just roof size times rainfall times a fixed conversion number, kind of like figuring out how many mason jars of tomatoes you'll get out of a given row of plants. You measure what's coming in, you plan storage for it, and you accept that some of it splashes off the gutter before you ever catch it.

Developed springs were the surprise winner for us — if you're lucky enough to have one. Our neighbor two properties over did the whole thing herself with a shovel, some gravel, and a plastic spring box for something like a weekend's labor and a few hundred dollars in materials, and now she's never paid a power bill for water in her life because there's no pump. It's basically the off-grid equivalent of finding out the previous owner already planted an apple tree — you didn't do the hard part, you just have to not mess it up.

The atmospheric water generator is our confirmed dud. We looked hard at a countertop unit after seeing an ad — they start around $1,500 — and I was genuinely excited for about ten minutes until I ran the electricity math for our climate. Western Oregon is damp enough in winter but bone-dry by August, right when you'd actually want the thing working, and the energy cost per gallon made bottled water look reasonable. It's in the "nope" pile next to the solar attic fan that died eight months in.

Greywater diversion is on the someday list — reusing shower and laundry water for the garden instead of the septic field feels like the kind of budgeting trick you'd use on groceries, just for water instead of money. We haven't done it yet because our laundry room is nowhere near the garden and I am, as previously established, not particularly handy.

Hauled water got us through that dry-pump summer, and I will say this for it: the delivery truck driver was more reassuring than any of the panicked forum threads I read at 11pm that week. It's expensive per gallon compared to almost anything else on this list, but when you need water THIS WEEK, it's the only thing on the table that actually shows up on time.

Technical Definitions and Yield Formulas

Rainwater Yield Formula
Potential annual harvest is calculated as: Roof Area (sq. ft.) × Annual Rainfall (inches) × 0.623 = Total Gallons. In the real world you only keep 75–85% of that number after evaporation, gutter overflow, and "first-flush diversion" take their cut [4] — first-flush just means the dirty first few gallons off a dusty roof that you deliberately dump instead of storing, the same way you'd toss the first thin pancake in the pan.
Atmospheric Water Generation (AWG) Efficiency
A residential AWG running at rated output uses roughly 0.93 to 1.09 kWh per gallon produced — 245 to 288 Wh per liter, if you think in metric [6]. That's why the countertop unit we almost bought would have quietly become a second electric bill.
Spring Development
Developing a spring means excavating upslope until you hit real flow, building a small rock-and-gravel "interception reservoir," and running a pipe from that reservoir into a sealed spring box that keeps leaves, animals, and surface runoff out of your water [12]. Think of it like building a little raised bed around a leak in the ground — contain it, filter it, then pipe it where you actually want it.

Regulatory and Reliability Factors

Every one of these systems runs into the same wall eventually: permits. Oregon made us get a permit just to drill our well, with a setback distance from the septic field that our driller had memorized better than I know my own phone number. Rainwater harvesting is actively encouraged with rebates in some states and legally restricted in others because of downstream water rights — check before you start bolting barrels together. Pulling water straight from a creek or pond usually means dealing with "riparian rights" or a water board allocation, which is a lot of paperwork for something that sounds as simple as sticking a hose in a stream.

Rule of thumb we've landed on after three years:

Your county extension office will know the local rules better than any article, ours included.

The information here is based on our own homestead experience and on the installer, extension, and market sources linked below — it's not professional advice. Off-grid water systems carry real health risks: contamination, waterborne illness, and structural failure if something's built wrong. Get your water tested before you drink it, follow your local permitting rules, and bring in a licensed well or septic professional for anything involving drilling, casing, or a septic setback. The interaction we'd flag hardest: untreated greywater or surface water used directly on food crops — that's a real route for E. coli exposure, not a theoretical one, so route it away from anything you're going to eat raw unless it's been properly filtered and disinfected first.

Last verified: 2026-07-12
